WiFi4 Adaptor
WiFi4 Adaptor is based on 802.11n standard. It is most price effective wifi net card.
It could be used in STB receiver, Android box, PC, DVR and so on…

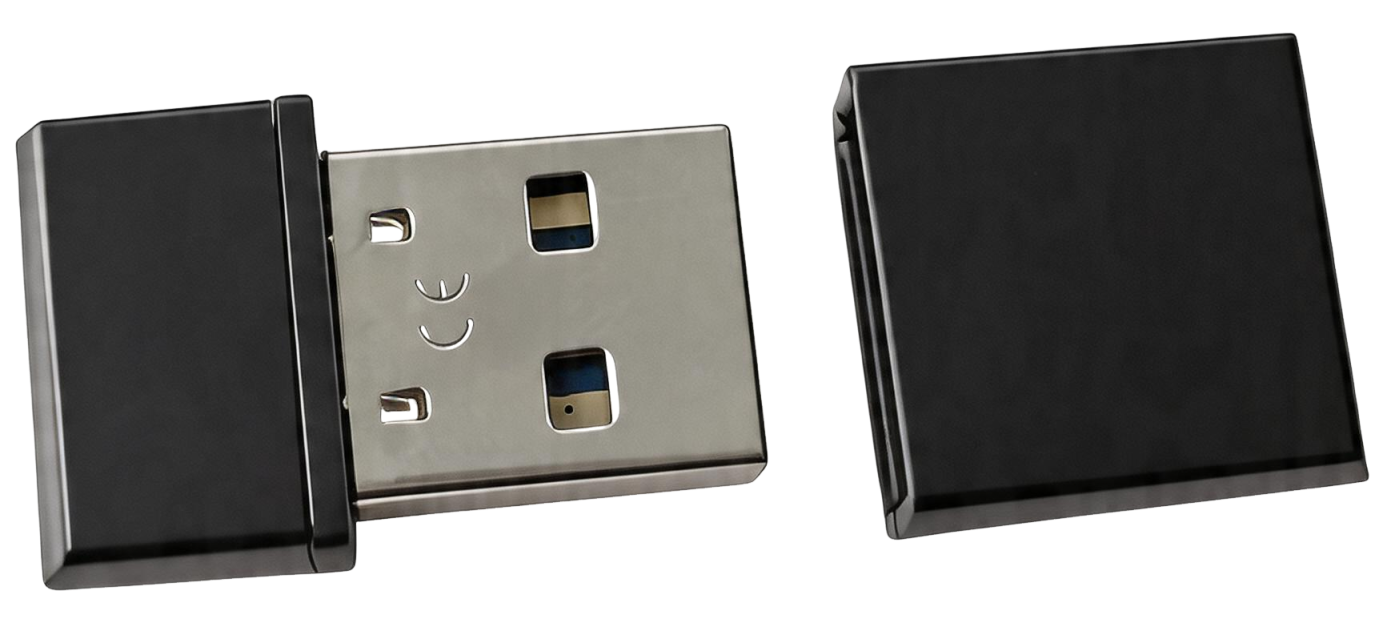

PN: ZY-DMT02AA
Product Detail Parameters
| Items | Parameters |
| Chipset | MT7601 |
| Standard | 150Mbps IEEE 802.11n |
| Size(L*W*H) | 26.2*15.4*7.9(mm) |
| Antenna | Built-in Antenna |
| Connector | Nickel plating USB header |
| LED light | No, without LED |

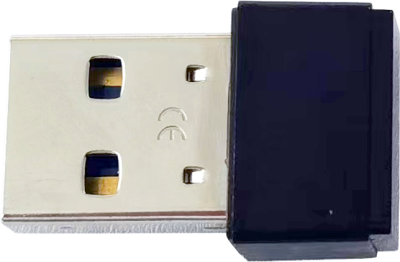

PN: ZY-MT7601-A
Product Detail Parameters
| Items | Parameters |
| Chipset | MT7601 |
| Standard | 150Mbps IEEE 802.11n |
| Size(L*W*H) | 24.1*15.2*7.6(mm) |
| Antenna | Built-in Antenna |
| Connector | Nickel plating USB header |
| LED light | Blue LED |
Based on the same housing, there are below part-number for different chipset
- ZY-DZ910UFA, chipset is ZT9101DU, drivers-free for PC Windows OS
- ZY-DR818UFB, chipset is RTL8188FTV, not drivers-free for PC Windows OS
- ZY-DR818GMI, chipset is RTL8188GU, drivers-free for PC Windows OS

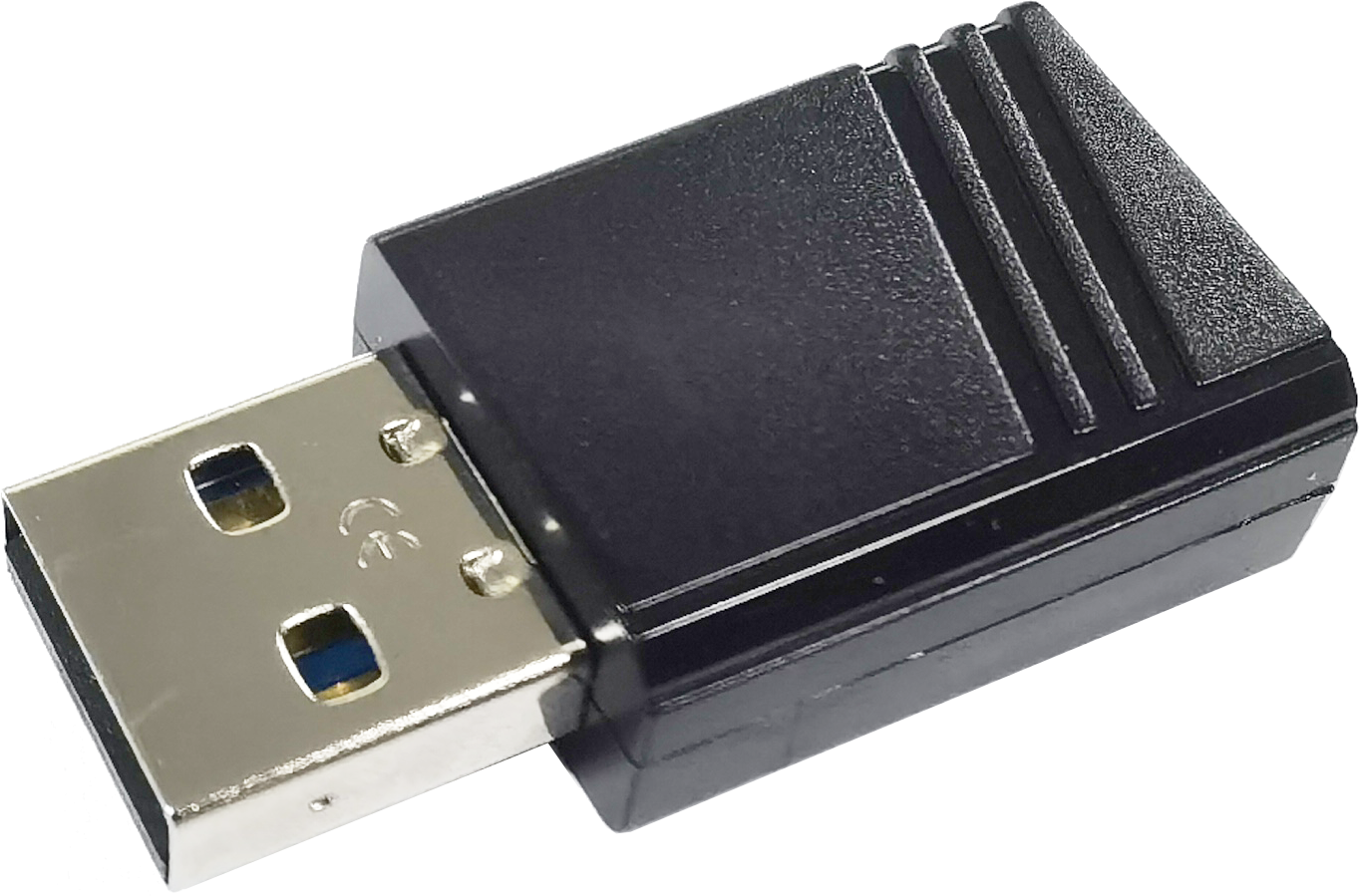

ZY-MT7601-A5
Product Detail Parameters
| Items | Parameters |
| Chipset | MT7601 |
| Standard | 150Mbps IEEE 802.11n |
| Size(L*W*H) | 35.7*17*9.2(mm) |
| Antenna | Built-in Antenna |
| Connector | Nickel plating USB header |
| LED light | Blue LED |
ZY-MT7601-A2
Product Detail Parameters
| Items | Parameters |
| Chipset | MT7601 |
| Standard | 150Mbps IEEE 802.11n |
| Size(L*W*H) | 150*17*7.6(mm) |
| Antenna | 2DBi Antenna |
| Connector | Nickel plating USB header |
| LED light | Blue LED |

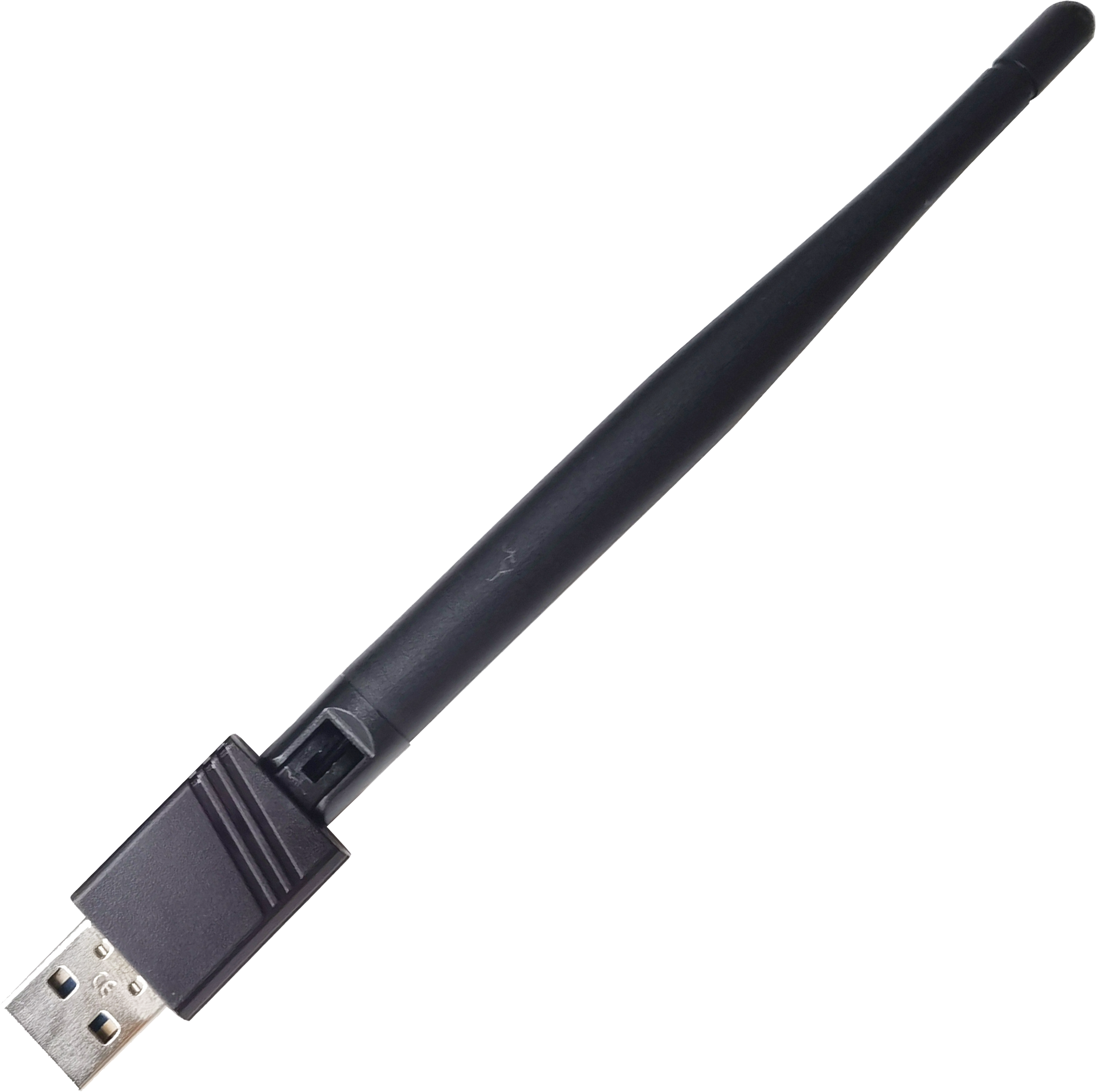

ZY-MT7601-A3
Product Detail Parameters
| Items | Parameters |
| Chipset | MT7601 |
| Standard | 150Mbps IEEE 802.11n |
| Size(L*W*H) | 152*17*9(mm) |
| Antenna | 2DBi Antenna |
| Connector | Nickel plating USB header |
| LED light | Blue LED |
Based on the same housing, there are below part-number for different chipset
ZY-DR818GFA, chipset is RTL8188GU, drivers-free for PC Windows OS

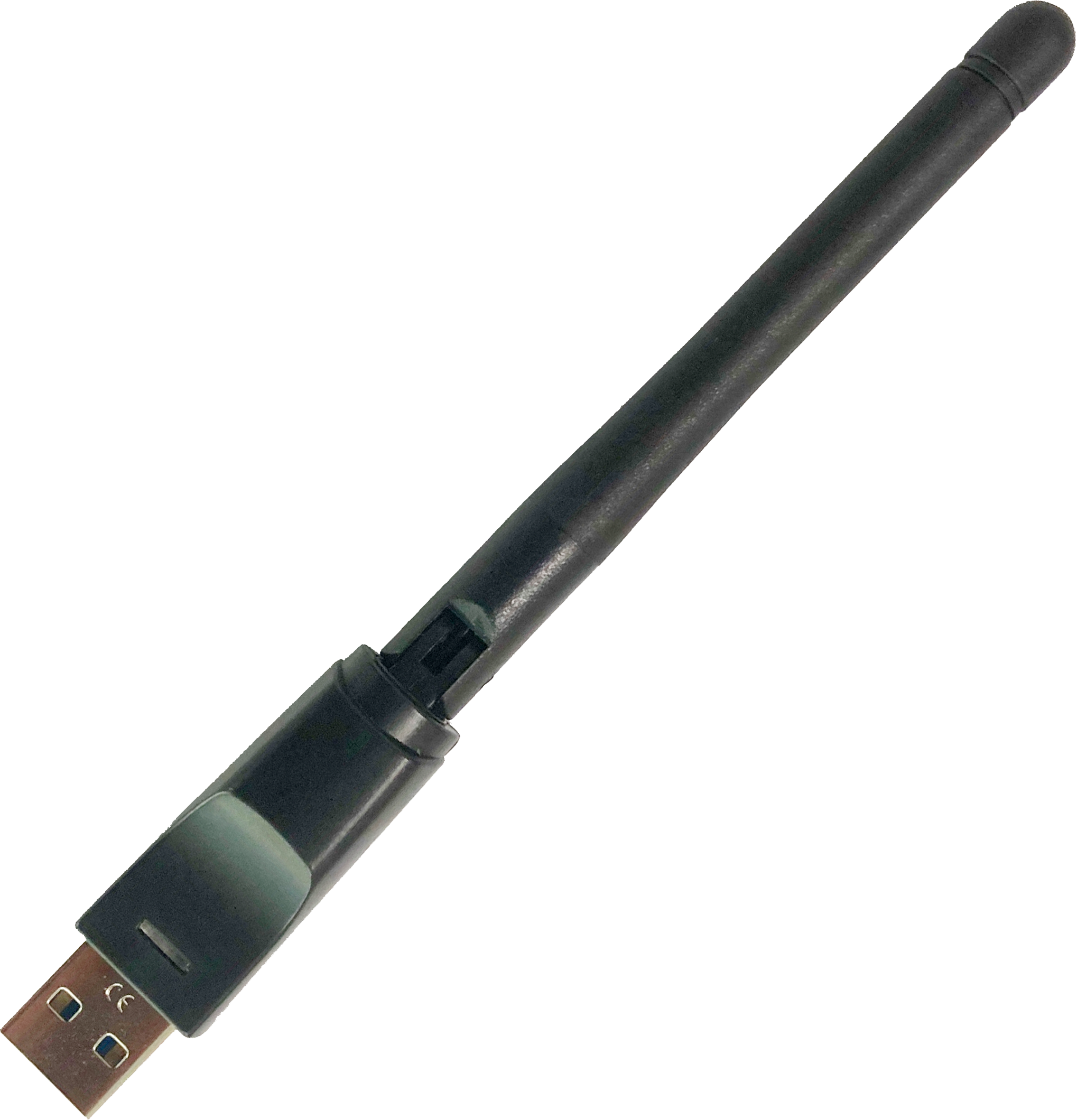

ZY-DMT03DA
Product Detail Parameters
| Items | Parameters |
| Chipset | MT7601 |
| Standard | 150Mbps IEEE 802.11n |
| Size(L*W*H) | 136.2*15*16.5(mm) |
| Antenna | 2DBi Antenna |
| Connector | Nickel plating USB header |
| LED light | Blue LED |

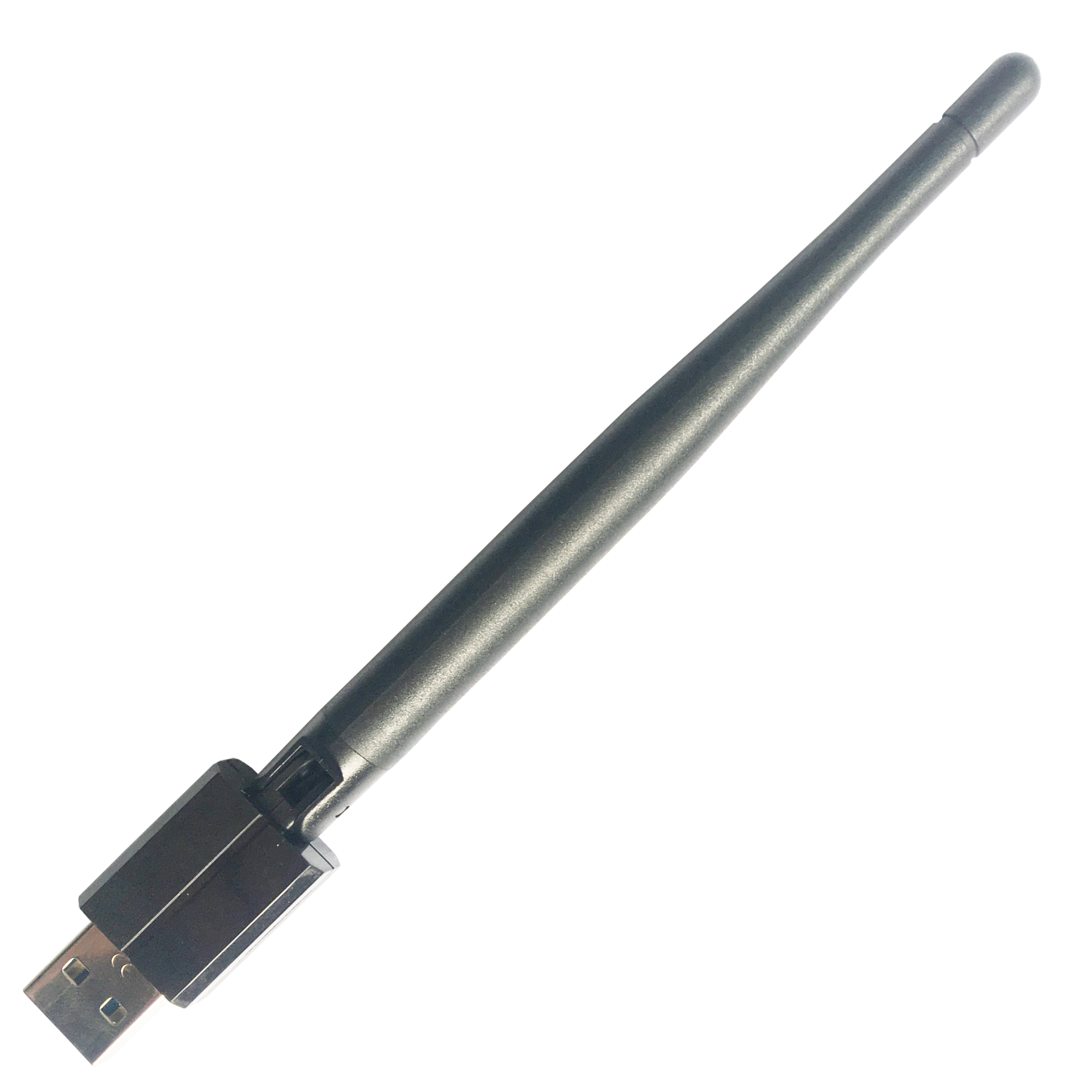

ZY-DMT07AA
Product Detail Parameters
| Items | Parameters |
| Chipset | MT7601 |
| Standard | 150Mbps IEEE 802.11n |
| Size(L*W*H) | 150*17.2*9(mm) |
| Antenna | 2DBi Antenna |
| Connector | Nickel plating USB header |
| LED light | Blue LED |

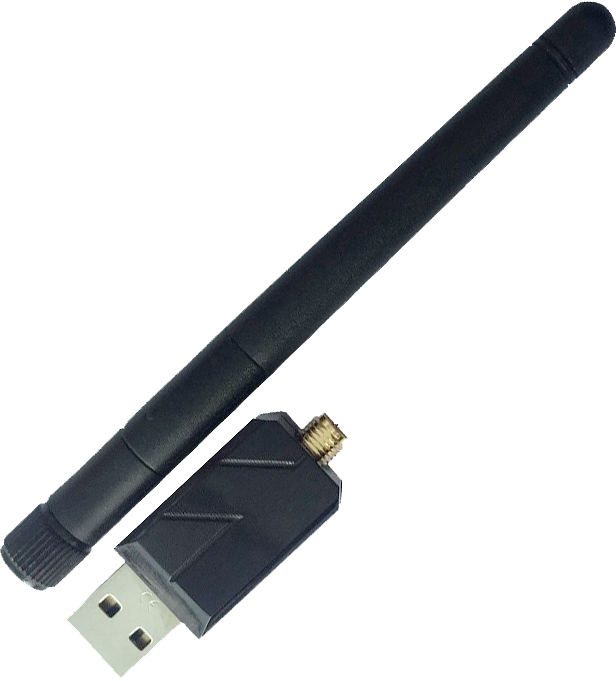

ZY-DMT11AA
Product Detail Parameters
| Items | Parameters |
| Chipset | MT7601 |
| Standard | 150Mbps IEEE 802.11n |
| Size(L*W*H) | 149*17.2*11(mm) |
| Antenna | 2DBi Detachable Antenna |
| Connector | Nickel plating USB header |
| LED light | Blue LED |
Note: 2DBi detachalbe antenna is default. 5DBi detachable antenna is supported as optional.

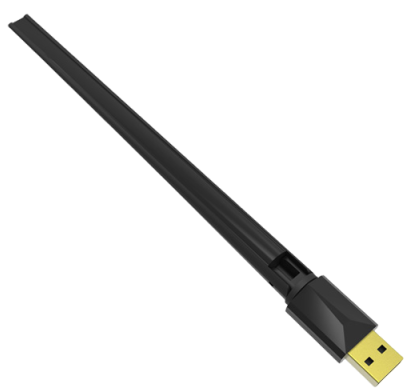

ZY-DMT113A
Product Detail Parameters
| Items | Parameters |
| Chipset | MT7601 |
| Standard | 150Mbps IEEE 802.11n |
| Size(L*W*H) | 197*17.5*13(mm) |
| Antenna | 5DBi Antenna |
| Connector | Nickel plating USB header |
| LED light | Blue LED |

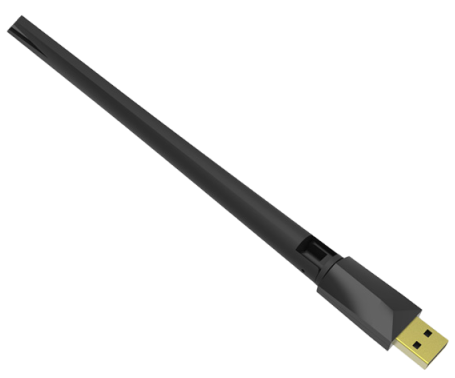

ZY-DMT12AA
Product Detail Parameters
| Items | Parameters |
| Chipset | MT7601 |
| Standard | 150Mbps IEEE 802.11n |
| Size(L*W*H) | 204*17.5*13(mm) |
| Antenna | 5DBi Antenna |
| Connector | Nickel plating USB header |
| LED light | Blue LED |
